Usage:

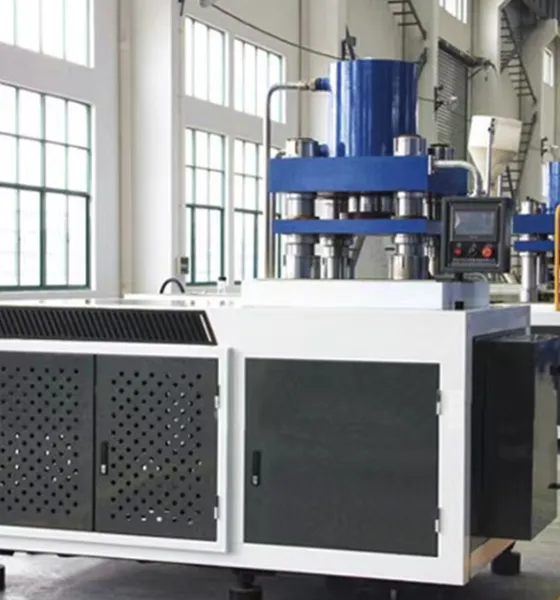

The YST-200T tablet press is a large tablet press developed by our factory.
Machine that compresses multiple granular, powdered and crystalline raw materials
It can be used for tableting in many industries.
Key Features:
Highlight 1: The whole equipment realizes the integration of pressing system and hydraulic system.
Strong force, high stability. Simple and elegant appearance.
Highlight 2: The internal use of Taiwan imported professional hydraulic system combined with PLC
Brain control. The whole action is continuous and automatic. At the same time, it can be eliminated.
Oil leakage and oil getting dirty easily need to be replaced frequently.
Highlight 3: The equipment is equipped with an automatic filling and discharging device, which can realize fully automatic tablet pressing.
Highlight 4: The die pressing part can produce multiple pieces or a single piece at a time to meet various customer requirements. The pressing time can be adjusted appropriately by PLC.
Highlight 5: The mold operation and replacement are simple and easy to understand, which greatly facilitates customers. At the same time, during the pressing process, limit contactors can be installed according to customer requirements.
Improve production safety and quality.
Highlight 6: This equipment is suitable for products with high density consistency such as ceramics. The equipment has a stable pressing speed, a pressure-maintaining pre-pressing function, and can press in both directions.
Ensure the consistency of density of the product when pressed.
Four-Column Hydraulic Press YST-200T: High-Precision Industrial Press Solution
The Four-Column Hydraulic Press YST-200T is a robust, high-capacity industrial machine designed for metal forming, molding, and heavy-duty pressing applications. With a 200-ton capacity and a four-column structure, it ensures uniform pressure distribution, operational stability, and long-lasting performance. This guide provides a detailed overview of the YST-200T, including installation diagrams, performance testing, installation instructions, and safety considerations, helping manufacturers achieve optimal efficiency and reliability.
Introduction to Four-Column Hydraulic Press YST-200T
Key Features and Advantages
Installation Diagram and Structural Overview
Performance Testing and Quality Assurance
Installation Instructions
Operating and Safety Guidelines
Technical Specifications Table
Applications Across Industries
Conclusion
The YST-200T is designed for high-precision industrial pressing tasks, including metal forming, punching, deep drawing, and assembly operations. Its four-column frame provides enhanced stability, even under heavy loads, and its hydraulic system allows smooth, adjustable, and accurate pressing. This model is suitable for manufacturers seeking reliable, high-output machines for medium-to-large scale industrial operations.
Hydraulic system provides uniform pressure across the pressing area.
Adjustable stroke and pressing speed ensure accurate shaping and forming.
Four-column design improves stability and load distribution.
Reduces frame deformation under heavy load conditions.
200-ton capacity allows high-efficiency processing of metal sheets and components.
Quick response hydraulic system reduces cycle time for multiple operations.
Heavy-duty steel construction and corrosion-resistant components.
Low-maintenance hydraulic system ensures long service life.
Digital control panel allows easy speed, stroke, and pressure adjustments.
Safety interlocks protect operators during pressing operations.
The YST-200T Four-Column Hydraulic Press features a compact and durable design.
| Component | Function |
|---|---|
| Base Frame | Provides overall support and stability |
| Four Columns | Ensure uniform load distribution and reduce frame deformation |
| Hydraulic Cylinder | Drives the ram with adjustable pressure and stroke |
| Pressing Table | Supports the workpiece during operation |
| Control Panel | Digital interface for operating speed, pressure, and stroke |
| Safety Shields | Protect operators from accidental contact |
Before delivery, each YST-200T undergoes rigorous performance testing to ensure operational reliability:
Load Test: Confirms the machine can handle full 200-ton capacity without frame deformation.
Stroke Accuracy Test: Ensures the hydraulic ram moves within ±0.1 mm precision.
Pressure Uniformity Test: Checks for consistent pressure distribution across the pressing area.
Cycle Test: Evaluates the hydraulic system’s response speed and repeatability.
Safety System Test: Confirms emergency stops and interlocks function properly.
Performance test reports are provided with each machine for customer verification and quality assurance.
Proper installation ensures safety and optimal performance:
Site Preparation
Level concrete foundation recommended.
Minimum clearance: 1 meter around the press.
Ensure proper grounding for the hydraulic and electrical system.
Machine Placement
Lift the machine using appropriate hoisting equipment.
Place it carefully on the prepared foundation.
Level the press using a precision leveling tool.
Hydraulic and Electrical Connection
Connect hydraulic oil supply and bleed air from the system.
Connect electrical power according to the manual specifications.
Pre-Operation Check
Verify lubrication of moving parts.
Test the hydraulic system for leaks and proper pressure.
Ensure safety interlocks and emergency stop buttons are functional.
Power on the press and control system.
Set pressure, stroke, and pressing speed according to the workpiece requirement.
Position the workpiece on the pressing table.
Initiate pressing operation via control panel or foot pedal.
Remove finished workpiece carefully.
Repeat cycle for production.
Always wear personal protective equipment (PPE) such as gloves and safety glasses.
Never place hands or tools under the pressing ram during operation.
Maintain regular lubrication and hydraulic fluid checks.
Follow lockout/tagout procedures before maintenance.
| Parameter | Specification |
|---|---|
| Model | YST-200T |
| Press Type | Four-Column Hydraulic Press |
| Maximum Capacity | 200 tons |
| Hydraulic Cylinder Stroke | Adjustable, up to 500 mm |
| Ram Speed | Adjustable, 10–50 mm/s |
| Table Size | 1200 × 1000 mm |
| Column Diameter | 120 mm |
| Power Supply | 380V/50Hz, 3-phase |
| Machine Weight | Approx. 4000 kg |
| Dimensions | 2500 × 1800 × 3000 mm |
The YST-200T Four-Column Hydraulic Press is suitable for multiple industrial applications:
Metal Forming: Sheet metal bending, stamping, and deep drawing.
Molding Operations: Rubber, plastic, or composite material forming.
Automotive Industry: Manufacturing car parts, chassis components, and metal panels.
Aerospace Industry: Precision forming of lightweight alloys and structural parts.
Heavy-Duty Industrial Use: Production of large components requiring uniform pressing pressure.
The Four-Column Hydraulic Press YST-200T combines precision, durability, and high capacity, making it ideal for industrial metal forming and molding operations. With rigorous performance testing, user-friendly installation, and safety-focused design, this press ensures reliable, efficient, and accurate pressing operations. Proper operation, regular maintenance, and adherence to safety protocols will maximize the lifespan and productivity of the YST-200T, providing a cost-effective and professional solution for manufacturers worldwide.
