Main uses and characteristics

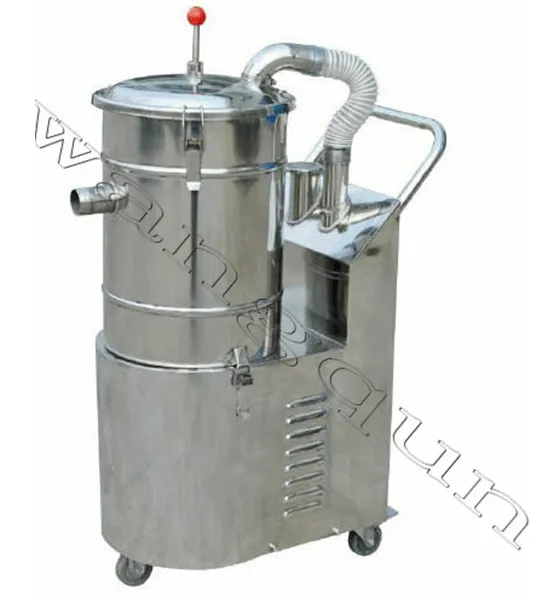

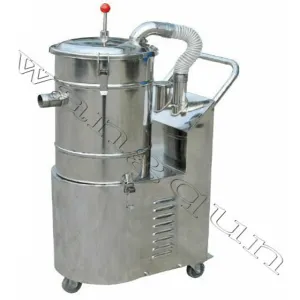

The XGB series of high-efficiency industrial vacuum cleaners was developed to meet the needs of continuous industrial vacuuming. Combining the advantages of various industrial vacuum cleaners, it utilizes a vortex air pump, similar to a large steam turbine impeller. As the vortex pump's impeller rotates, the air between the impeller blades is subjected to centrifugal force, moving toward the impeller's edge. There, the air enters the annular space of the pump body and then returns to the impeller, where it begins the same cycle again. Because the air is uniformly accelerated, the circulating airflow generated by the impeller's rotation causes the air to exit in a spiral, leaving the pump with extremely high energy for use (the pressure generated is 120-170 times that of a centrifuge of the same speed and diameter). This makes it easy to operate, flexible, versatile, and safe and reliable. It is particularly suitable for vacuuming large areas in pharmaceutical, chemical, and food production plants.
Technical Parameters
model | XGB-110 | XGB-150 | XGB-220 | XGB-300 |
Rated voltage (V) | 3￠*380 | 3￠*380 | 3￠*380 | 3￠*380 |
Power(w) | 1100 | 1500 | 2200 | 3000 |
Large flow rate (m3/h) | 135 | 175 | 210 | 300 |
Maximum pressure (kpa) | <12 | <13 | <18 | <20 |
Vacuum degree(kpa) | 15 | 18 | 20 | twenty one |
Overall dimensions (mm) | 700*450*1200 | 700*450*1200 | 850*500*1300 | 900*550*1400 |
Weight (kg) | 55 | 55 | 80 | 100 |
Reasons to choose us:
1. Strong technical force, advanced equipment, all product indicators meet national standards, reliable product quality and stable performance.
2. Worry-free after-sales service, customer first, providing warm and attentive service.
Service philosophy:
Competition makes the market economy highly dynamic. We are committed to providing excellent service. Only in this way can we survive and stand out in this highly competitive market, because we believe that the key to our development lies in developing customers.
We favor mutual trust and respect, and therefore focus on establishing broad and equal cooperative relationships with customers, as well as strategic partnerships. At the same time, we also strive to explore and manage our customers' interests and needs. At our company, the concept of "customer first" is widely accepted. We adjust our product portfolio according to market changes and new customer needs, investing in research and innovation at all times. Establishing and completing customer service is always a priority.
Tablet Press High Efficiency Industrial Powder Absorber – Optimized Dust and Powder Collection Solution
The Tablet Press High Efficiency Industrial Powder Absorber is an essential piece of equipment for tablet manufacturing facilities, designed to collect powder and remove dust during tablet production. By incorporating advanced filtration, strong suction capabilities, and durable stainless steel construction, this absorber ensures clean tablets, minimal contamination, and a hygienic production environment.
This equipment is widely used in pharmaceutical, nutraceutical, and herbal supplement industries, enabling manufacturers to enhance operational efficiency, meet hygiene standards, and improve overall product quality.
The High Efficiency Industrial Powder Absorber delivers outstanding performance in several critical areas:
Superior Dust Collection Efficiency
Multi-stage filtration captures fine and coarse powder particles.
Adjustable suction ensures effective cleaning without damaging tablets.
Durable and Hygienic Construction
Made from stainless steel (SS 304/316) for corrosion resistance.
Smooth surfaces prevent powder buildup and simplify cleaning.
Energy Efficiency
Optimized motor and airflow design reduce energy consumption.
Continuous operation support for high-speed tablet presses.
User-Friendly Operation
Intuitive control panel for adjusting suction power, vibration, and filter status.
Safety interlocks protect operators during maintenance and filter replacement.
Compact and Modular Design
Easily integrates with various tablet press models.
Modular design allows for expansion or automation integration.
| Model | Capacity (tablets/hour) | Power (kW) | Suction Rate (m³/h) | Filter Type | Material |
|---|---|---|---|---|---|
| HEPA-TPD-100 | 50,000 – 100,000 | 1.5 | 600 – 800 | HEPA | SS 304 |
| HEPA-TPD-200 | 100,000 – 200,000 | 2.2 | 900 – 1,200 | HEPA | SS 304 |
| HEPA-TPD-300 | 200,000 – 300,000 | 3 | 1,500 – 2,000 | HEPA | SS 316 |
| HEPA-TPD-400 | 300,000 – 400,000 | 4 | 2,500 – 3,000 | HEPA | SS 316 |
Note: Custom specifications are available based on tablet size, production speed, and powder type.
Before shipment, each Tablet press powder absorber undergoes rigorous performance testing to ensure optimal efficiency and reliability:
Filtration Efficiency Test
Measures particle capture rate across multiple stages.
Ensures compliance with pharmaceutical cleanliness standards.
Suction Power Test
Verifies adjustable airflow meets design requirements for different tablet sizes.
Operational Stability Test
Checks vibration stability and motor performance under continuous operation.
Safety Compliance Test
Confirms interlock systems, emergency stops, and protective guards function correctly.
Clients have consistently reported high satisfaction with High Efficiency Industrial Powder Absorbers:
Pharmaceutical Manufacturer: "The absorber significantly reduced dust contamination and improved tablet quality. Maintenance is simple and efficient."
Nutraceutical Producer: "Integration with our tablet press was seamless. It is energy-efficient and easy to operate."
Herbal Supplement Facility: "The modular design allows us to upgrade easily as production scales increase."
Despite its robust design, users may encounter minor issues. Here’s a quick guide:
| Issue | Possible Cause | Solution |
|---|---|---|
| Reduced suction | Clogged filter or duct | Clean or replace filters; check duct connections |
| Excessive vibration | Loose bolts or misaligned components | Tighten all bolts; realign absorber assembly |
| Motor overheating | Continuous operation without breaks | Allow cooling periods; inspect motor bearings |
| Powder accumulation inside unit | Poor maintenance schedule | Implement regular cleaning and filter checks |
The absorber consists of high-quality components designed for durability and performance:
| Component | Material | Function |
|---|---|---|
| Suction Hood | SS 304/316 | Collects powder and dust from tablet surfaces |
| HEPA Filter | High-efficiency synthetic | Captures fine particles |
| Motor and Fan Assembly | Industrial-grade | Generates suction for powder collection |
| Vibration System | Steel & rubber | Facilitates powder removal from tablet surfaces |
| Control Panel | ABS / Stainless | Adjusts suction, monitors filter status |
| Discharge Chute | SS 304 | Safely transfers collected powder to container |
Regular maintenance ensures long service life and consistent performance:
Daily Maintenance
Clean the suction hood, discharge chute, and external surfaces.
Check for loose bolts or visible wear.
Weekly Maintenance
Inspect and clean filters; ensure proper installation.
Verify motor and fan operation.
Monthly Maintenance
Replace worn gaskets or seals.
Lubricate moving parts as specified.
Annual Maintenance
Full inspection of the control system, motors, and structural components.
Upgrade filters or motors if necessary.
High Efficiency – Captures fine and coarse powders, reducing contamination.
Durable Construction – Stainless steel ensures hygiene and longevity.
Energy-Saving Design – Optimized motors and airflow reduce energy consumption.
User-Friendly Operation – Intuitive controls and safety features enhance usability.
Upgradeable & Modular – Supports automation and production scaling.
The Tablet Press High Efficiency Industrial Powder Absorber is a critical solution for modern tablet production, ensuring clean, high-quality tablets while maintaining a hygienic and efficient production environment. Its advanced filtration, robust construction, and modular design make it suitable for a range of industries, including pharmaceutical, nutraceutical, and herbal supplements. With rigorous performance testing, comprehensive user support, and easy maintenance, this equipment is an essential investment for quality, efficiency, and safety in tablet production lines.
