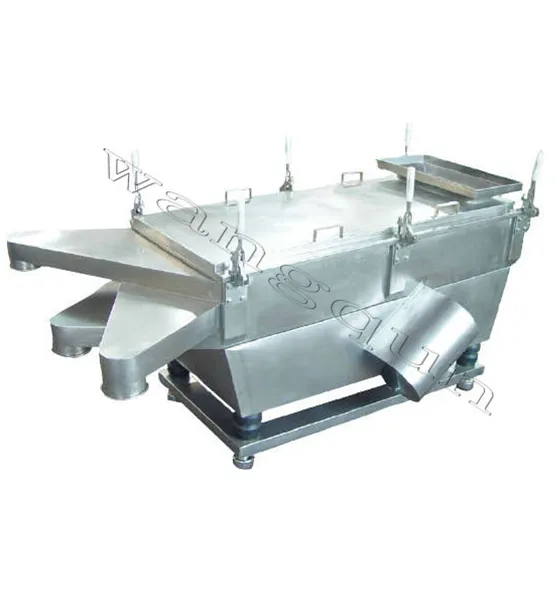

Square Drying and Screening Equipment – Efficient Powder and Granule Processing

Introduction

Square Drying and Screening Equipment is a state-of-the-art industrial solution designed for uniform drying and precise particle screening of powders, granules, and bulk materials. Widely used in the pharmaceutical, chemical, and food industries, this equipment combines high-efficiency airflow systems, adjustable temperature control, and robust construction to improve productivity, reduce material loss, and maintain product quality.

This guide provides detailed insights into performance testing, equipment features, maintenance methods, and transport precautions, helping operators maximize efficiency and operational safety.

Performance Features

The Square Drying and Screening Equipment offers multiple performance advantages for industrial applications:

1. Uniform Drying

• Advanced airflow distribution ensures consistent heat transfer to all materials.

• Adjustable temperature and airflow settings accommodate different material types.

2. Precise Screening

• Multi-layer mesh screens separate particles according to size.

• Vibrating or oscillating screening ensures high throughput and minimal clogging.

3. Robust Square Design

• Square shape maximizes drying area while ensuring structural stability.

• Compact footprint allows integration into existing production lines.

4. Energy Efficiency

• Optimized air circulation reduces energy consumption.

• Insulated construction minimizes heat loss.

5. Hygienic Construction

• Made from stainless steel or corrosion-resistant materials.

• Smooth surfaces facilitate cleaning and prevent material adhesion.

Technical Specifications

Note: Custom models can be designed to meet specific capacity or material requirements.

Performance Testing

Performance testing ensures the equipment meets industrial standards and operational expectations:

• Drying Efficiency Test

• Material is loaded into the drying chamber.

• Temperature and airflow are monitored to confirm uniform heat distribution.

• Moisture content is measured before and after drying to verify performance.

• Screening Accuracy Test

• Material samples are screened through multiple mesh layers.

• Particle size distribution is analyzed to ensure precision separation.

• Load and Vibration Test

• Simulates maximum operational load to verify mechanical stability.

• Monitors vibration levels to ensure minimal equipment wear and consistent performance.

Operation Guidelines

Pre-Operation Checks

• Verify all electrical and mechanical connections are secure.

• Inspect screen layers and drying chamber for damage or foreign material.

• Confirm airflow and heating systems are functional.

Operation Steps

1. Load material evenly across the drying chamber.

2. Set the desired temperature and airflow parameters.

3. Activate the vibrating or oscillating screen system.

4. Monitor material movement and drying progress.

5. Adjust airflow or vibration settings as necessary for consistent output.

Shutdown Procedure

• Switch off heating and airflow systems.

• Allow material to cool before removal.

• Clean screens, drying chamber, and airflow ducts to prevent contamination.

Maintenance Methods

Proper maintenance ensures long-term efficiency and durability:

• Daily Maintenance

• Remove residual material from screens and drying chamber.

• Wipe surfaces with food-safe or chemical-safe cleaning agents depending on the material processed.

• Weekly Maintenance

• Inspect and tighten bolts, screws, and screen frames.

• Lubricate vibration motors and moving parts according to manufacturer guidelines.

• Monthly Maintenance

• Check electrical components, including temperature sensors and motor connections.

• Inspect airflow ducts for dust accumulation or blockages.

• Annual Maintenance

• Replace worn screens or mesh layers.

• Conduct full structural inspection to detect potential corrosion or fatigue.

Transport Precautions

Ensuring safe transportation is crucial to maintaining equipment integrity:

Following these precautions helps prevent damage and ensures the equipment is ready for immediate installation.

Applications

The Square Drying and Screening Equipment is widely used in industries requiring efficient drying and precise particle separation:

1. Pharmaceutical Industry

• Dry powders and granules for tablets, capsules, and medicinal formulations.

2. Chemical Industry

• Process resins, powders, and chemical compounds with precise particle size control.

3. Food Industry

• Dry grains, spices, starch, and other bulk food materials.

• Maintain hygiene and reduce material loss during processing.

4. Nutraceuticals & Supplements

• Dry protein powders, herbal granules, and dietary supplements efficiently.

Conclusion

The Square Drying and Screening Equipment is a high-performance, energy-efficient, and durable solution for drying and screening powders and granules across multiple industries. Its precise particle separation, uniform drying, and robust construction make it ideal for pharmaceutical, chemical, and food processing applications.

By investing in this equipment, manufacturers can enhance production efficiency, ensure product quality, and maintain operational safety, making it an essential part of modern material processing lines.
