Product Description

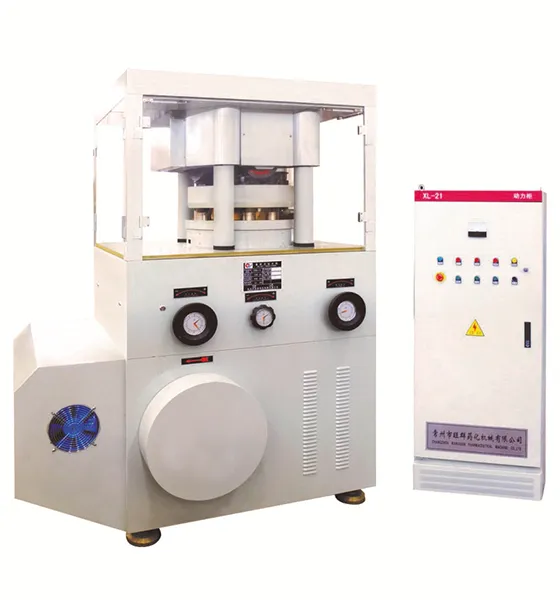

Large-tonnage tablet presses are mainly used for tablet compression in the chemical, ceramic, and metallurgical industries. The tablet press is an automatic continuous production equipment that presses 10-80 mesh granules into round, special-shaped tablets with a diameter not greater than 100mm, or tablets with text, symbols, and graphics.
Application Scope
This machine is a rotary continuous production tablet press. It is primarily used for pressing large-diameter disinfectant tablets, such as sodium dichloroisocyanurate, triisocyanuric acid, and other chemical tablets. It can also be used to press granular or powdery materials in other chemical, electronic, pharmaceutical, food, and ceramic industries. By replacing the mold, it can also press ring-shaped, spherical, and various special-shaped tablets. However, it is not suitable for pressing moist or viscous materials.
Product Features
1. The mechanical transmission part of the machine is completely isolated from the tablet pressing studio to prevent the material from being contaminated during tablet pressing;
2. The tablet pressing room is a fully enclosed structure with organic glass. During operation, the whole process of tablet pressing can be clearly seen while preventing dust from flying and polluting the surrounding environment.
3. The working surface of the turntable is inlaid with titanium alloy plates, and the blanking tube, upper and lower punches, and middle mold are all made of titanium alloy;
4. This machine is equipped with a pre- pressing wheel device to improve the tableting quality and has an automatic lubrication system;
5. This machine adopts a four-column structure, which has good stability and smooth operation during operation;
6. The motor of this machine is controlled by a frequency converter, and the speed can be infinitely adjusted within the allowable range according to the actual production requirements;
7. This machine is equipped with an automatic powder spraying device for release agent, which is suitable for pressing materials that are difficult to release from the mold and have stickiness.
Working Principle
The punch and die are subjected to great pressure during the tableting process and are usually made of bearing steel (such as CRL5, etc.) and heat treated to increase their hardness.
There are many types of punches, and the shape of the punch is determined by the desired shape of the tablet. The die structure can be divided into round and irregular shapes (including polygonal and curved shapes); the cross-section of the punch can be flat, beveled, shallowly concave, deeply concave, and mixed shapes. Flat and beveled punches are used to press flat cylindrical tablets, shallowly concave punches are used to press biconvex tablets, deeply concave punches are mainly used to press the core of coated tablets, and mixed shapes are mainly used to press irregular tablets. To facilitate identification and administration of medications, markings such as the drug name, dosage, and vertical and horizontal lines can also be engraved on the end face of the die. To press tablets of different dosages, a punch of appropriate size should be selected.
rotary tablet press ZP80-10: High-Capacity Industrial Tablet Production Solution
The Rotary Tablet Press ZP80-10 is a robust, high-capacity tablet compression machine designed for pharmaceutical, nutraceutical, chemical, and food industries. With 10 stations, this machine efficiently produces uniform tablets while maintaining compliance with GMP standards. This guide provides comprehensive information on operating procedures, maintenance requirements, troubleshooting, and technical specifications, helping manufacturers optimize production performance.
Introduction to ZP80-10 Rotary Tablet Press
Key Advantages
Structure Overview
Operation Instructions
Maintenance and Care
Troubleshooting Guide
Technical Specifications
Applications
Conclusion
The Rotary Tablet Press ZP80-10 is engineered to compress powders or granular materials into tablets of consistent size, weight, and hardness. With its 10 tooling stations, the machine delivers high output while ensuring uniform quality. The ZP80-10 is suitable for medium-to-large batch production, offering reliable performance for pharmaceutical companies, dietary supplement manufacturers, and other industrial applications. Its compact footprint, user-friendly control system, and robust stainless steel construction make it ideal for production lines requiring continuous, high-speed tablet manufacturing.
10 compression stations provide continuous tablet production.
Output can reach up to 15,000–18,000 tablets per hour, depending on material and tablet size.
Adjustable compression force and filling depth ensures uniform tablet weight and hardness.
Suitable for tablets ranging from 5 mm to 20 mm in diameter.
Constructed with high-grade stainless steel and corrosion-resistant alloys.
Heavy-duty base reduces vibration and ensures stable operation.
Fully enclosed powder-contact parts prevent contamination.
Transparent safety shields allow observation while ensuring operator safety.
Digital control panel allows real-time monitoring and adjustment of machine parameters.
Modular components enable quick replacement of punches, dies, and other wear parts.
The Rotary Tablet Press ZP80-10 is designed for durability, efficiency, and safety.
Base and Frame – Heavy-duty steel frame for stability and vibration reduction.
Turret – Holds 10 die stations; rotates smoothly with precision bearings.
Hopper and Feeder – Stores and evenly feeds powder into dies.
Upper and Lower Punches – Compact the material into tablets.
Compression Rollers – Apply adjustable pressure for consistent tablet hardness.
Ejection System – Pushes finished tablets out of dies into the collection tray.
Control System – Digital interface for adjusting speed, pressure, and thickness.
Safety Shields – Protect operators and prevent contamination.
Operating the ZP80-10 Rotary Tablet Press safely and efficiently requires following standardized procedures.
Clean all powder-contact parts to meet GMP standards.
Inspect punches, dies, and turret for wear or damage.
Check lubrication levels before operation.
Load the powder or granular material into the hopper.
Adjust the feeder for uniform powder distribution into dies.
Start the machine using the digital control panel.
The turret rotates, allowing upper and lower punches to compress powder into tablets.
Adjust compression force and filling depth as needed.
Ejected tablets are collected via the discharge chute.
Randomly sample tablets to inspect weight, thickness, and hardness.
Gradually reduce machine speed before stopping.
Clean hopper, feeder, punches, and dies thoroughly.
Lubricate moving components for next operation.
Proper maintenance extends the machine's service life and ensures stable performance.
Lubricate all moving parts.
Inspect punches and dies for wear or damage.
Clean powder-contact surfaces.
Check turret alignment and tightness of bolts.
Inspect compression rollers for wear.
Verify safety shield integrity.
Conduct a full calibration of compression force and filling depth.
Replace any worn punches or dies.
Review maintenance log for recurring issues.
| Problem | Possible Cause | Solution |
|---|---|---|
| Uneven tablet weight | Irregular powder flow | Adjust feeder speed; ensure consistent powder granules |
| Tablet capping or lamination | Air trapped in powder | Adjust pre-compression; check powder granularity |
| Soft tablets | Low compression pressure | Increase compression force |
| Powder sticking to punches | Poor powder formulation | Use anti-sticking agents; clean tooling |
| Machine vibration | Loose bolts or unbalanced turret | Tighten components; check alignment |
| Parameter | Specification |
|---|---|
| Model | ZP80-10 |
| Number of Stations | 10 |
| Max Compression Force | 80 kN |
| Max Tablet Diameter | 20 mm |
| Max Filling Depth | 15 mm |
| Tablet Thickness Range | 2–6 mm |
| Rotation Speed | Up to 30 rpm (adjustable) |
| Production Capacity | 15,000–18,000 tablets/hour |
| Motor Power | 5 kW |
| Dimensions | 1000 × 900 × 1700 mm |
| Net Weight | 1400 kg |
The ZP80-10 is suitable for multiple industries:
Pharmaceuticals: Compressing medicinal powders into tablets.
Nutraceuticals: Producing vitamins, herbal tablets, and supplements.
Food Industry: Candy, sweetener, and effervescent tablets.
Chemical Industry: Detergent and catalyst tablets.
Veterinary Medicine: Animal health tablets.
The Rotary Tablet Press ZP80-10 offers high efficiency, precision, and durability, making it ideal for medium-to-large-scale tablet production. Its 10 stations, GMP-compliant design, and easy maintenance ensure high-quality output across pharmaceutical, nutraceutical, and chemical industries. Proper operation, routine maintenance, and timely troubleshooting maximize machine lifespan and production efficiency, making ZP80-10 a reliable choice for industrial tablet manufacturing worldwide.
