Product Description

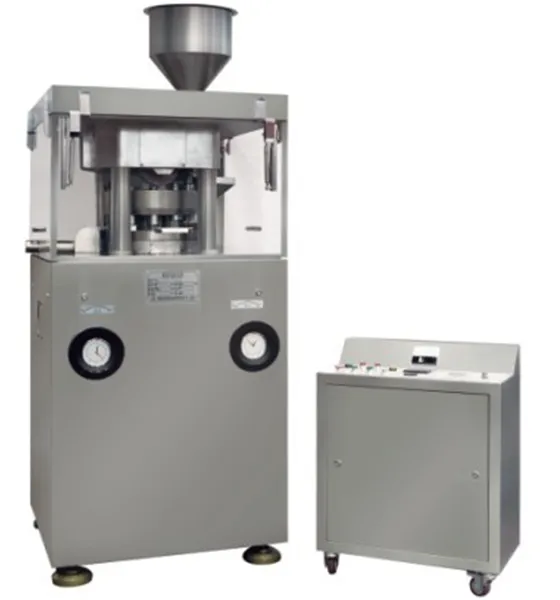

The ZP30-17 rotary tablet press is used to compress various granular raw materials into round tablets, making it suitable for small-batch production. The ZP30-17 rotary tablet press features a turntable that can accommodate 17 punches, producing 17 tablets per rotation. The turntable speed, material filling depth, and tablet thickness can all be adjusted during tableting. A mechanical buffer prevents damage from overload. A powder suction box on one side of the machine absorbs dust generated during operation, preventing clogging and allowing for reuse of raw materials. It is suitable for use in the pharmaceutical, chemical, and food industries, where it compresses various granular raw materials into tablets, such as round and blocky tablets, sugar tablets, and calcium tablets.
Application Scope
This rotary, continuous tablet press is widely used in the pharmaceutical, food, chemical, ceramic, electronics, plastics, and powder metallurgy industries to compress a variety of granular materials into tablets. By changing the mold, it can press various round or special-shaped tablets with text, symbols, and graphics. However, it is not suitable for pressing gelatinous, moist, or semi-solid materials.
Product Features
1. The mechanical transmission part of the machine is completely isolated from the tablet pressing studio to prevent the material from being contaminated during tablet pressing;
2. The tablet pressing room is a fully enclosed structure with organic glass. During operation, the whole process of tablet pressing can be clearly seen while preventing dust from flying and polluting the surrounding environment.
3. The turntable is made of special cast iron with titanium coating on the outer surface, which has good corrosion resistance. According to user needs, the upper and lower punches and the middle die can be made of titanium alloy or hard alloy;
4. This machine is equipped with a pre-pressing wheel device to improve tablet pressing quality;
5. This machine adopts a four-column structure, which has good stability and smooth operation during operation;
6. The motor of this machine is controlled by a frequency converter, and the speed can be infinitely changed within the allowable range according to actual production requirements.
Working Principle
1. The outer cover is fully enclosed and made of stainless steel. The internal table is made of stainless steel, which can maintain the surface gloss and prevent cross contamination, and complies with GMP.
2. A transparent protective cover allows for a clear view of the machine's operation. It can be fully opened for easy cleaning and maintenance.
3. The speed is infinitely variable and can be adjusted at will.
4. It achieves mechatronics, featuring touch-sensitive keys and a display (for speed, output, fault information, etc.).
5. The transmission system is enclosed in an oil tank beneath the machine body, creating a secure separation between independent components that prevent cross-contamination. The drive shaft is immersed in an oil reservoir for adequate lubrication, reducing noise and wear.
6. A dust collector is installed to remove dust from the pressing chamber.
7. The punches are compatible with ZP19, 33, 35, and 37 tablet presses.
8. When pressing double-layer tablets, output is halved compared to single-layer tablets.
rotary tablet press ZP30-17: High-Efficiency Tablet Production Equipment
The Rotary Tablet Press ZP30-17 is an advanced pharmaceutical machine engineered for consistent, large-scale tablet production. Designed with 17 stations, it combines efficiency, durability, and compliance with international standards, making it widely used in the pharmaceutical, nutraceutical, food, and chemical industries. This article provides a detailed overview of the machine, including core advantages, structural design, operating procedures, and troubleshooting guidelines.
Introduction to ZP30-17 Rotary Tablet Press
Core Advantages
Structural Description
Operation Instructions
Troubleshooting and Maintenance
Technical Specifications Table
Applications Across Industries
Conclusion
The Rotary Tablet Press ZP30-17 is specifically designed for compressing powder and granular materials into tablets of uniform size and shape. With its 17 tooling stations, the press achieves higher productivity compared to single-punch tablet presses while ensuring tablet quality and consistency.
This model is especially popular among manufacturers who require medium-to-large batch production of tablets, such as pharmaceutical companies, dietary supplement manufacturers, and food processing enterprises. Built with a compact footprint, user-friendly controls, and a reliable safety system, it supports both research-scale and industrial-scale applications.
The Rotary Tablet Press ZP30-17 offers several benefits that set it apart from traditional machines:
Equipped with 17 stations, the machine delivers a high output of tablets per hour, significantly improving production capacity.
Supports continuous compression, reducing downtime between batches.
Each tablet produced maintains uniform thickness, weight, and hardness, ensuring compliance with pharmaceutical standards.
Equipped with adjustable compression force and filling depth for flexible production.
Built with high-strength alloy steel and corrosion-resistant components.
Heavy-duty base reduces vibration and ensures stable operation.
Designed with stainless steel enclosures to reduce contamination.
Transparent safety covers allow monitoring while protecting operators.
Intuitive control panel simplifies parameter adjustment.
Modular design allows quick replacement of punches, dies, and other wear parts.
The Rotary Tablet Press ZP30-17 features a robust and compact structure designed for efficiency and safety.
Base and Frame
Heavy-duty steel frame ensures machine stability.
Houses motor and main drive system.
Turret
Contains 17 die stations for continuous tablet compression.
Rotates smoothly with precision bearings.
Hopper and Feeder
Hopper stores raw powder or granules.
Feeder ensures even material distribution into dies.
Upper and Lower Punches
Responsible for compacting material into tablets.
Made from wear-resistant steel for long service life.
Compression Rollers
Apply adjustable pressure to form tablets of desired hardness.
Ejection System
Removes finished tablets from dies and directs them to the discharge chute.
Control System
Digital panel for controlling speed, pressure, and thickness.
Safety Enclosures
Transparent covers prevent accidental contact and contamination.
Operating the ZP30-17 Rotary Tablet Press requires careful adherence to standard procedures.
Clean all contact parts thoroughly to meet GMP standards.
Inspect punches, dies, and turret for wear or damage.
Check lubrication levels to ensure smooth operation.
Load powder or granules into the hopper.
Adjust feeder to ensure uniform material flow.
Start the machine via the control panel.
Turret rotates, allowing upper and lower punches to compress material in dies.
Compression force and filling depth can be adjusted during operation.
Finished tablets are ejected and collected via the discharge chute.
Conduct random sampling for quality inspection.
Stop machine gradually to avoid mechanical stress.
Clean hopper, feeder, punches, and dies.
Perform lubrication and record maintenance activities.
Even with reliable engineering, minor issues may arise. Below are common problems and solutions.
| Issue | Possible Cause | Solution |
|---|---|---|
| Uneven tablet weight | Irregular powder flow | Adjust feeder and ensure consistent granule size |
| Tablet capping/lamination | Air entrapment in powder | Improve granulation process, adjust pre-compression |
| Soft tablets | Insufficient compression force | Increase compression pressure |
| Sticking to punches | Poor powder formulation or dirty tooling | Clean punches, use anti-sticking agents |
| Machine vibration | Loose components or unbalanced turret | Tighten bolts, check alignment |
Lubricate moving parts daily.
Inspect punches and dies for wear after each batch.
Replace worn components immediately.
Conduct full machine calibration monthly.
Keep detailed maintenance logs for compliance.
| Parameter | Specification |
|---|---|
| Model | ZP30-17 |
| Number of Stations | 17 |
| Max Compression Force | 40–50 kN |
| Max Tablet Diameter | 20 mm |
| Max Filling Depth | 15 mm |
| Tablet Thickness Range | 2–6 mm |
| Rotation Speed | Up to 30 rpm (adjustable) |
| Production Capacity | Approx. 20,000 tablets/hour |
| Motor Power | 4 kW |
| Dimensions | 900 × 800 × 1600 mm |
| Net Weight | 1200 kg |
The Rotary Tablet Press ZP30-17 is versatile and suitable for multiple industries:
Pharmaceuticals: Compressing medicinal powders into standard tablets.
Nutraceuticals: Production of vitamins, herbal supplements, and dietary tablets.
Food Industry: Candy, sweetener, or effervescent tablets.
Chemicals: Detergent tablets, catalyst tablets, and water-treatment tablets.
Veterinary Medicine: Animal health supplement tablets.
The Rotary Tablet Press ZP30-17 offers a perfect balance of efficiency, precision, and durability, making it a reliable solution for medium-to-large scale production. Its 17 stations, user-friendly controls, and compliance with GMP standards ensure high-quality output across diverse industries.
With proper operation, preventive maintenance, and timely troubleshooting, the ZP30-17 guarantees long service life and stable productivity. Whether used in pharmaceutical, nutraceutical, or food processing sectors, this rotary tablet press remains a cost-effective and professional choice for manufacturers worldwide.
