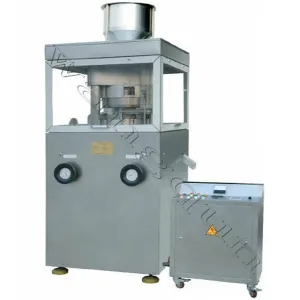

Product Description
The ZP50-11 rotary tablet press is used to press various granular raw materials into round and shaped tablets, making it a basic machine suitable for mass production. It features a dual-press design with two feeding devices and two sets of wheels. The turntable can hold up to 33 pairs of dies, producing 66 tablets per rotation. The turntable speed, material filling depth, and tablet thickness are adjustable. A mechanical buffer prevents damage from overload. The machine is equipped with a powder suction box. This suction nozzle removes dust generated during operation, preventing clogging and allowing for the recovery of raw materials for reuse.
Application Scope
This machine is suitable for pressing granular raw materials into round tablets, blocks, spheres, annular tablets, and special-shaped tablets in the food, pharmaceutical, chemical, and electronics industries. It is not suitable for pressing semi-solids, moist granules, low-solubility, hygroscopic raw materials, or non-granular or fine powdered materials. This machine complies with GMP standards. The punch and pin are combined, allowing you to press products of different cavity shapes simply by replacing the pin.
Product Features
1. This machine is a single-press type equipped with 11 pairs of dies. The dies are installed on a workbench (referred to as a turntable). The punch moves up and down along the guide rail curve, and completes the actions required for the tableting process through the upper and lower pressing wheels .
2. The tablet pressing process of this machine is continuous feeding, filling, tablet pressing and tablet discharging.
3. This machine is driven by an electric motor, which drives the reducer through a V-belt to drive the working turntable to rotate clockwise.
4. The pressing wheel device adopts rolling friction, and its working pressure can be adjusted within a certain range according to the tablet pressing requirements.
5. The working room of this machine adopts organic glass fully enclosed opening door, which allows the whole tablet pressing process to be seen and prevents dust from flying during tablet pressing.
6. The thickness of the tablet and the working pressure can be adjusted according to the direction indicated by the hand wheel.
7. The speed of the working turntable is adjusted through the frequency conversion speed regulation device, and the knob is used to make smooth adjustments on the electrical operation cabinet.
8. The electrical system and the main unit are separated, which can keep the electrical components clean and reliable.
Working Principle
1. The outer casing is fully enclosed and made of stainless steel, while the internal countertop is also made of stainless steel, maintaining a glossy surface and preventing cross-contamination, in compliance with GMP standards.
2. A transparent protective cover allows for a clear view of the machine's operation and can be fully opened for easy cleaning and maintenance.
3. The speed is infinitely adjustable and can be adjusted at will.
4. The machine is mechatronic, featuring touch-sensitive keys and a display (for speed, output, and fault information).
5. The drive system is enclosed in an oil tank beneath the machine body, creating a secure separation between components to prevent cross-contamination. The drive shaft is immersed in an oil reservoir for adequate lubrication, reducing noise and wear.
6. A dust collector is installed to remove dust from the pressing chamber.
7.The punches are compatible with ZP19, 33, 35, and 37 tablet presses.
8. When pressing double-layer tablets, output is halved compared to single-layer tablets.
rotary tablet press ZP50-11: Application Areas, Maintenance Recommendations, Specifications, and After-Sales Support
The Rotary Tablet Press ZP50-11 is a high-capacity, precision-engineered tablet press designed for pharmaceutical, nutraceutical, and chemical production. With a multi-station rotary system, it ensures uniform tablet weight, thickness, and hardness, supporting continuous high-speed production.
Constructed with stainless steel and high-strength mechanical components, the ZP50-11 provides reliable, long-lasting, and GMP-compliant performance. Its adjustable compression force, intuitive digital interface, and compact footprint make it ideal for laboratories, pilot plants, and medium-to-large-scale production facilities, offering a cost-effective and efficient solution for high-quality tablet manufacturing.
This guide details the application areas, maintenance recommendations, specifications, and after-sales support for the ZP50-11, providing operators and managers with a complete operational overview.
The ZP50-11 is suitable for a wide range of industries where tablet production is essential:
Production of prescription tablets, over-the-counter (OTC) tablets, and vitamins.
Ensures consistent tablet quality, meeting GMP and regulatory standards.
Ideal for herbal supplements, minerals, and dietary tablets.
Maintains uniform tablet weight and hardness, ensuring accurate dosage per tablet.
Production of detergent tablets, water treatment tablets, and other industrial tablets.
Supports high-speed production while preserving tablet integrity.
Suitable for research and development labs.
Allows testing of new tablet formulations before full-scale production.
Proper maintenance of the ZP50-11 ensures consistent performance, extended machine life, and high-quality tablets.
Clean the hopper, die, and punches to prevent contamination.
Check for powder residues around moving components.
Verify control panel operation and emergency stop functionality.
Inspect punches and dies for wear or damage.
Lubricate bearings, gears, and other moving parts.
Ensure alignment of compression rollers and punches.
Conduct full inspection of motor and transmission system.
Check electrical connections and sensor functionality.
Verify tablet weight and hardness consistency.
Replace worn punches and dies.
Perform thorough cleaning and recalibration.
Review overall machine performance and schedule upgrades if needed.
Rotary Tablet Press ZP50-11: Application Areas, Maintenance Recommendations, Specifications, and After-Sales Support
The Rotary Tablet Press ZP50-11 is a high-capacity, precision-engineered tablet press designed for pharmaceutical, nutraceutical, and chemical production. With a multi-station rotary system, it ensures uniform tablet weight, thickness, and hardness, supporting continuous high-speed production.
Constructed with stainless steel and high-strength mechanical components, the ZP50-11 provides reliable, long-lasting, and GMP-compliant performance. Its adjustable compression force, intuitive digital interface, and compact footprint make it ideal for laboratories, pilot plants, and medium-to-large-scale production facilities, offering a cost-effective and efficient solution for high-quality tablet manufacturing.
This guide details the application areas, maintenance recommendations, specifications, and after-sales support for the ZP50-11, providing operators and managers with a complete operational overview.
The ZP50-11 is suitable for a wide range of industries where tablet production is essential:
Production of prescription tablets, over-the-counter (OTC) tablets, and vitamins.
Ensures consistent tablet quality, meeting GMP and regulatory standards.
Ideal for herbal supplements, minerals, and dietary tablets.
Maintains uniform tablet weight and hardness, ensuring accurate dosage per tablet.
Production of detergent tablets, water treatment tablets, and other industrial tablets.
Supports high-speed production while preserving tablet integrity.
Suitable for research and development labs.
Allows testing of new tablet formulations before full-scale production.
Proper maintenance of the ZP50-11 ensures consistent performance, extended machine life, and high-quality tablets.
Clean the hopper, die, and punches to prevent contamination.
Check for powder residues around moving components.
Verify control panel operation and emergency stop functionality.
Inspect punches and dies for wear or damage.
Lubricate bearings, gears, and other moving parts.
Ensure alignment of compression rollers and punches.
Conduct full inspection of motor and transmission system.
Check electrical connections and sensor functionality.
Verify tablet weight and hardness consistency.
Replace worn punches and dies.
Perform thorough cleaning and recalibration.
Review overall machine performance and schedule upgrades if needed.
The ZP50-11 comes with a set of technical specifications suitable for various production requirements:
Number of Compression Stations: 11
Production Capacity: Up to 55,000 tablets/hour (depending on tablet size and material)
Tablet Weight Range: 50–600 mg
Tablet Diameter: 6–20 mm
Motor Power: 7.5 kW
Machine Dimensions: 2.5 m × 1.2 m × 1.6 m
Machine Weight: Approximately 1,600 kg
Digital touchscreen control panel with real-time monitoring
Automatic lubrication system
Tablet hardness and thickness measurement sensors
GMP-compliant dust collection and safety enclosure
| Interval | Task | Notes |
|---|---|---|
| Daily | Clean hopper, die, and punches | Prevent contamination |
| Weekly | Inspect punches, lubricate moving parts | Ensure smooth operation |
| Monthly | Check motor, transmission, and sensors | Maintain performance |
| Annually | Replace worn components, full recalibration | Optimize machine longevity |
The ZP50-11 comes with a set of technical specifications suitable for various production requirements:
Number of Compression Stations: 11
Production Capacity: Up to 55,000 tablets/hour (depending on tablet size and material)
Tablet Weight Range: 50–600 mg
Tablet Diameter: 6–20 mm
Motor Power: 7.5 kW
Machine Dimensions: 2.5 m × 1.2 m × 1.6 m
Machine Weight: Approximately 1,600 kg
Digital touchscreen control panel with real-time monitoring
Automatic lubrication system
Tablet hardness and thickness measurement sensors
GMP-compliant dust collection and safety enclosure
| Model | Stations | Max Capacity (tabs/h) | Tablet Weight (mg) | Tablet Diameter (mm) | Motor Power (kW) |
|---|---|---|---|---|---|
| ZP50-11 Standard | 11 | 55,000 | 50–600 | 6–20 | 7.5 |
| ZP50-11 Advanced | 11 | 55,000 | 50–600 | 6–20 | 7.5 |
| ZP50-11 GMP | 11 | 50,000 | 50–600 | 6–20 | 7.5 |
The ZP50-11 is backed by comprehensive after-sales support, ensuring reliable and continuous operation:
On-site guidance for leveling, calibration, and electrical connections.
Verification of machine performance and tablet quality before production begins.
Access to detailed maintenance manuals and video tutorials.
Remote support for diagnosing mechanical or electrical issues.
Scheduled maintenance programs to minimize downtime.
Operator training on machine operation, safety protocols, and routine maintenance.
Technical training for advanced troubleshooting and calibration.
Standard 12-month warranty covering manufacturing defects.
Availability of spare parts and consumables, ensuring minimal production interruption.
The Rotary Tablet Press ZP50-11 is a high-capacity, precise, and reliable solution for pharmaceutical, nutraceutical, and chemical tablet production.
Its robust stainless steel construction, multi-station rotary design, high-speed production, and digital controls ensure consistent tablet quality, operational safety, and long-term durability.
By following proper maintenance recommendations, adhering to specifications, and utilizing after-sales support, operators can maximize efficiency, reduce downtime, and achieve optimal tablet uniformity, making the ZP50-11 a strategic investment for modern tablet manufacturing facilities.
