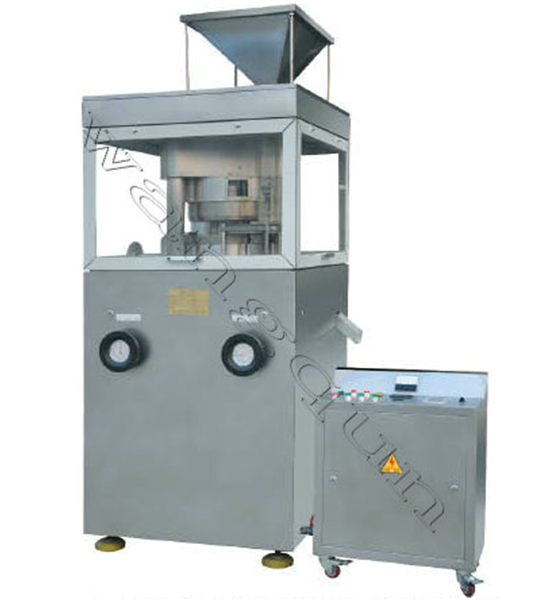

This machine is suitable for pressing granular raw materials into round tablets, blocks, spheres, and annular tablets in the food, pharmaceutical, chemical, and electronics industries. It is not suitable for pressing semi-solids, moist granules, low-solubility, hygroscopic raw materials, or non-granular or fine powdered materials. This machine complies with GMP standards. The punch and pin are combined; changing the cavity to a different size requires simply ordering a separate pin.
Working principle and structural characteristics
1.The machine is driven by an electric motor (stepless speed regulation controlled by a frequency converter) → pulley drive → worm drive → the main shaft drives the turntable to rotate clockwise.
3. When the machine is working, the turntable drives 13 pairs of dies to rotate clockwise, and the upper and lower dies move up and down along the curved track, and the pressure action is completed by the pressure wheel.
4. The upper and lower pressure wheel devices adopt rolling friction, which is beneficial to reduce working resistance and power consumption.
5. The safety unloading device of the pressure wheel is on the lower pressure wheel shaft and is balanced by a spring. Its working pressure is adjusted by the spring sleeve. When overpressure occurs, the spring sleeve automatically jumps to unload, and the alarm device on the electric cabinet will send out an alarm signal. This is conducive to pressure stability, reduces impact and vibration, and protects the punch rod.
6. The control and adjustment of each part such as filling, tablet thickness and speed are all centrally controlled, which is easy to operate.
7. This machine adopts closed oil-lubricated worm and worm gear transmission to reduce power loss and extend its service life.
8.The peripheral components of this machine adopt a fully enclosed structure, which completely separates the sealed tablet pressing chamber and the driving mechanism, prevents dust from flying and avoids cross contamination of oil.
9. The electrical control of this machine adopts variable frequency stepless speed regulation, which is easy and intuitive to operate, and the operation panel is simple and clear.
10. Equipped with a dust collector, which can automatically remove dust.
Number of turntable dies | 13 pay sets | |
Diameter of upper and lower punches | Φ 42mm | |
High work pressure | 200KN | |
Tableting range | piece | Φ30*8~20mm |
ball | Φ30mm | |
piece | 40*16*20mm | |
Large filling depth | 46mm | |
Turntable speed | 0-12 rpm | |
Motor power | 5.5kw | |
Vacuuming power | 2.2kw | |
Large production | 9360 pieces/hour | |
Overall dimensions (L*W*H) | 790*780*2200MM | |
Host weight | 1800kg | |
rotary tablet press ZP30-13: Customer Feedback, Product Highlights, Packaging Information, and Technical Services
The Rotary Tablet Press ZP30-13 is a high-performance, precision-engineered tablet press designed for pharmaceutical, nutraceutical, and chemical industries. Its multi-station rotary system ensures uniform tablet weight, thickness, and hardness, making it ideal for continuous high-speed tablet production.
Constructed with stainless steel and high-strength mechanical components, the ZP30-13 provides reliable, long-lasting, and GMP-compliant performance. The adjustable compression force, user-friendly control panel, and compact footprint make it perfect for laboratories, pilot plants, and medium-scale production facilities, offering a cost-effective solution for consistent, high-quality tablet manufacturing.
This guide highlights customer feedback, product features, packaging information, and technical services, providing a full overview for manufacturers and operators.
Users of the ZP30-13 consistently report high satisfaction due to its precision, reliability, and ease of use.
Consistent Tablet Quality: Customers emphasize the machine’s ability to maintain uniform weight and hardness, which reduces waste and ensures compliance with quality standards.
High Production Efficiency: Many users report achieving up to 30,000–35,000 tablets per hour, meeting medium-scale production requirements.
Ease of Operation: Operators appreciate the intuitive digital control panel and adjustable compression settings, which simplify production and reduce training time.
Durability and Maintenance: Positive feedback highlights long-term reliability, with minimal maintenance issues when following recommended schedules.
Example Testimonial:
"The ZP30-13 has transformed our pilot plant production. It consistently produces uniform tablets, and the user interface is very intuitive. Maintenance is straightforward, making it a valuable addition to our facility." – Pharmaceutical Production Manager
The ZP30-13 incorporates several technical features that set it apart in tablet production:
Multi-station rotary design supports continuous high-speed production.
Ensures uniform tablet weight, thickness, and hardness for each batch.
Stainless steel construction resists corrosion and wear.
Smooth surfaces facilitate easy cleaning, meeting GMP compliance standards.
Digital control panel allows real-time monitoring of speed, compression force, and tablet parameters.
Safety features include emergency stop buttons and overload protection.
Optimized motors and transmission reduce energy consumption.
Variable speed and intelligent load monitoring support eco-friendly operations.
Proper packaging ensures the ZP30-13 arrives safely and maintains operational integrity:
Outer Packaging: Reinforced wooden crate with anti-vibration padding.
Internal Protection: Foam padding around critical components (punches, dies, control panel).
Weight: Approximately 1,500–1,700 kg, depending on configuration.
Dimensions: L × W × H ~ 2.2 m × 1.2 m × 1.5 m.
Use a forklift or crane with adequate lifting capacity.
Avoid tilting the machine beyond 15° during transport.
Protect from moisture, dust, and extreme temperatures.
The ZP30-13 comes with comprehensive technical support and service options to ensure reliable operation:
Professional guidance on site to assist with installation and leveling.
Verification of electrical connections and calibration prior to first operation.
Regular maintenance schedule provided, covering daily, weekly, and monthly tasks.
Troubleshooting guides for common issues, including tablet inconsistency, sticking, or mechanical noise.
Operator training on machine operation, safety protocols, and routine maintenance.
Digital manuals and videos provided for ongoing reference.
Standard 12-month warranty covering manufacturing defects.
Availability of spare parts and consumables to minimize downtime.
| Interval | Task | Notes |
|---|---|---|
| Daily | Clean machine and remove powder residues | Prevent contamination |
| Weekly | Inspect punches, dies, and alignment | Adjust or replace as necessary |
| Monthly | Lubricate moving components | Use recommended lubricants |
| Quarterly | Check motor, belts, and transmission | Ensure smooth operation |
| Annually | Replace worn punches and dies | Maintain tablet consistency |
The Rotary Tablet Press ZP30-13 is a high-performance, reliable, and user-friendly tablet press suitable for pharmaceutical, nutraceutical, and chemical production.
With its durable stainless steel construction, high-speed multi-station design, precise tablet control, and comprehensive technical support, the ZP30-13 ensures consistent tablet quality, operational safety, and long-term productivity.
Following proper installation, packaging, and maintenance procedures, operators can maximize production efficiency, minimize downtime, and achieve optimal tablet uniformity, making the ZP30-13 an essential investment for modern tablet manufacturing facilities.
